Had to make a part with a ~200mm long 3mm diameter hole to feed a conductor through.
No supports allowed, you'll never get them cleared out at that length. Tiny footprint and rigidity required along the long axis.
Instead of round, the holes are square shaped, standing on a corner. Comes out extremely clean. Sorry for potato quality.

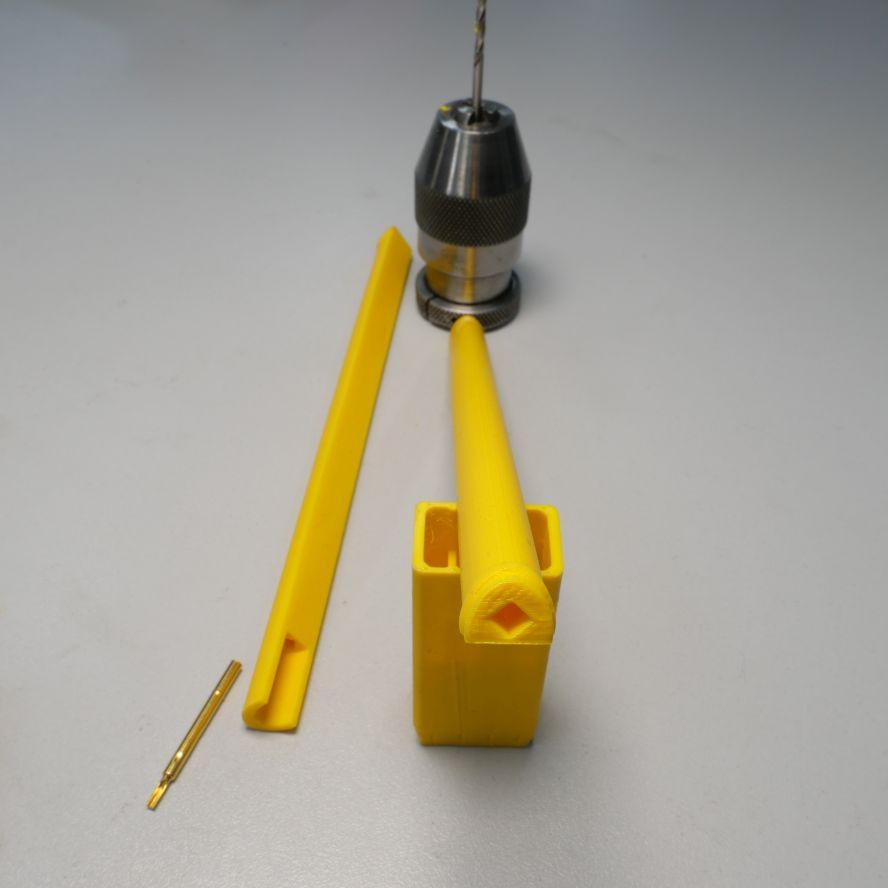

Potatone

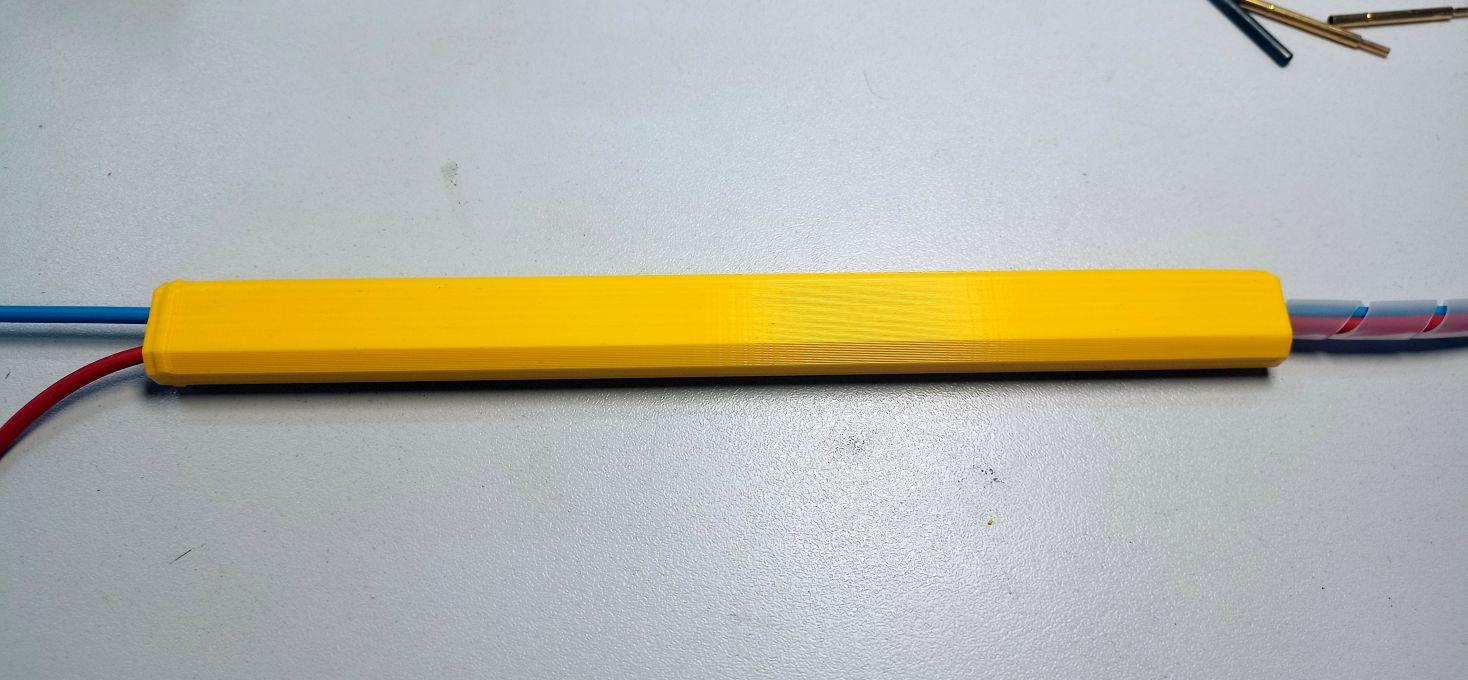

Potatwo
